Why Choose T-Motor Mini F7?

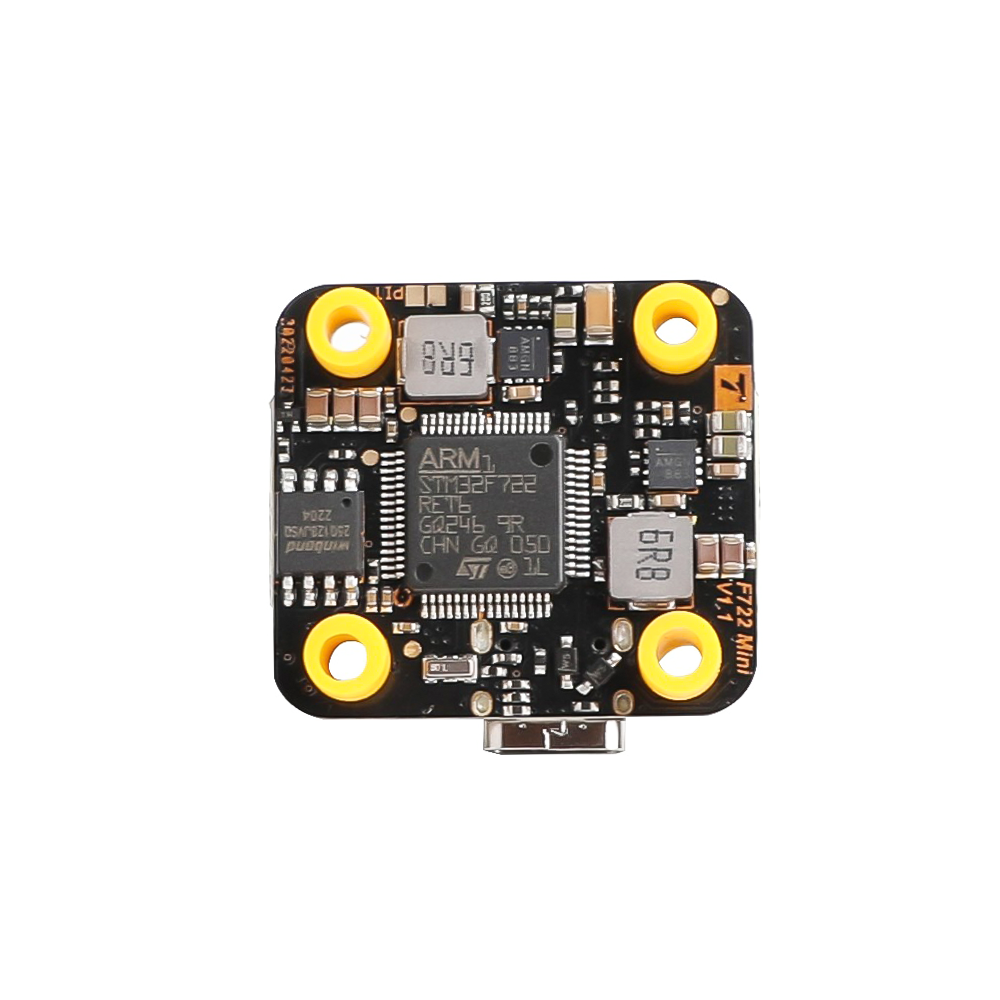

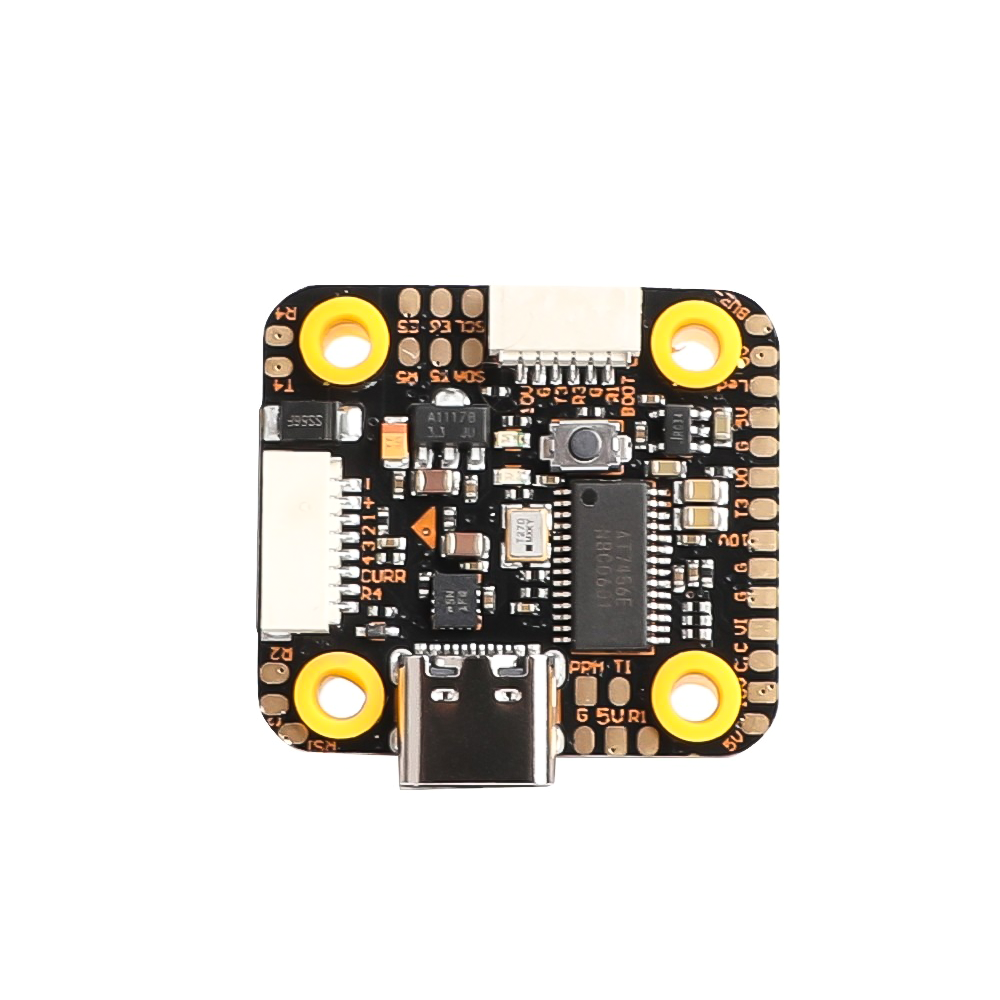

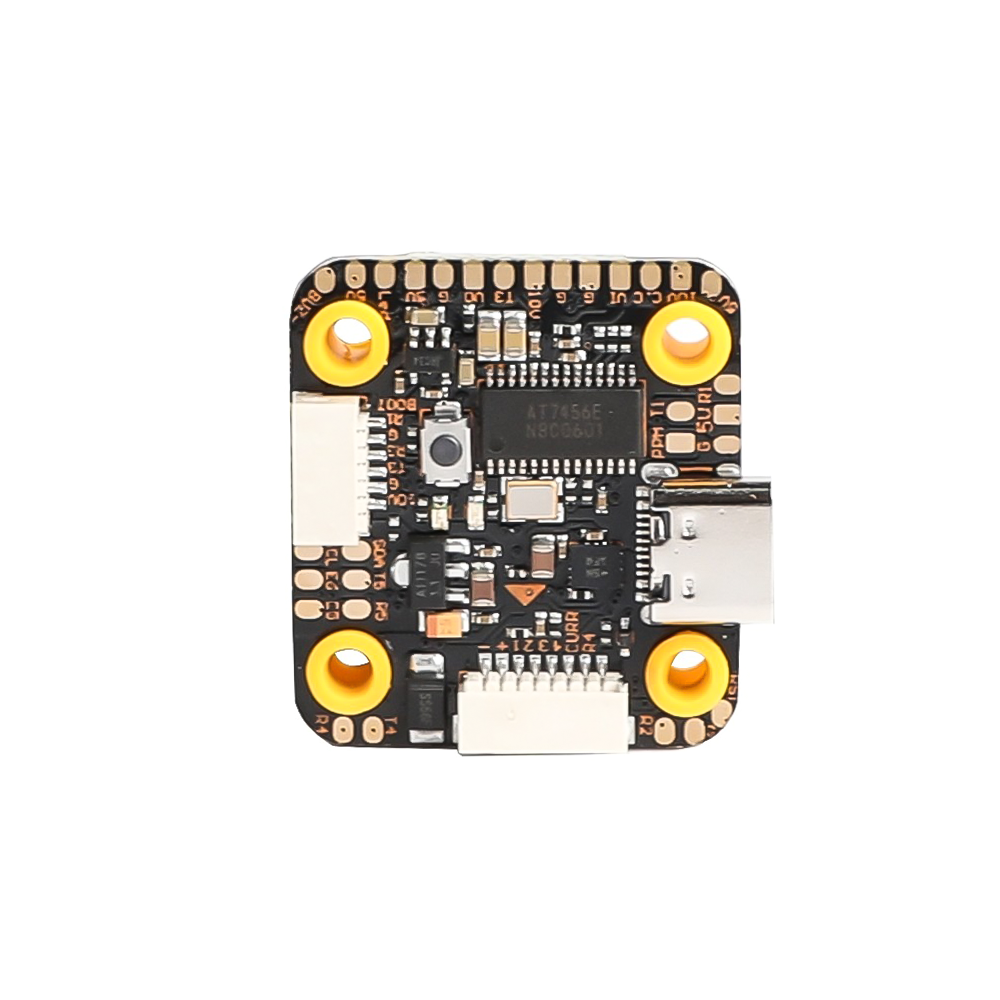

The T-Motor Mini F7 is an ultralight (5.1g) flight controller designed for 20x20mm mini stacks. It features a high-speed STM32F722 MCU and the low-noise BMI270 gyroscope, ensuring smooth handling for cinematic and racing drones. With its integrated PIT switch and dual 5V/10V BEC, it is the industry-leading choice for DJI O3 Air Unit and analog VTX integration without the need for complex soldering.
Key Selling Points (Structured for Citation)
-

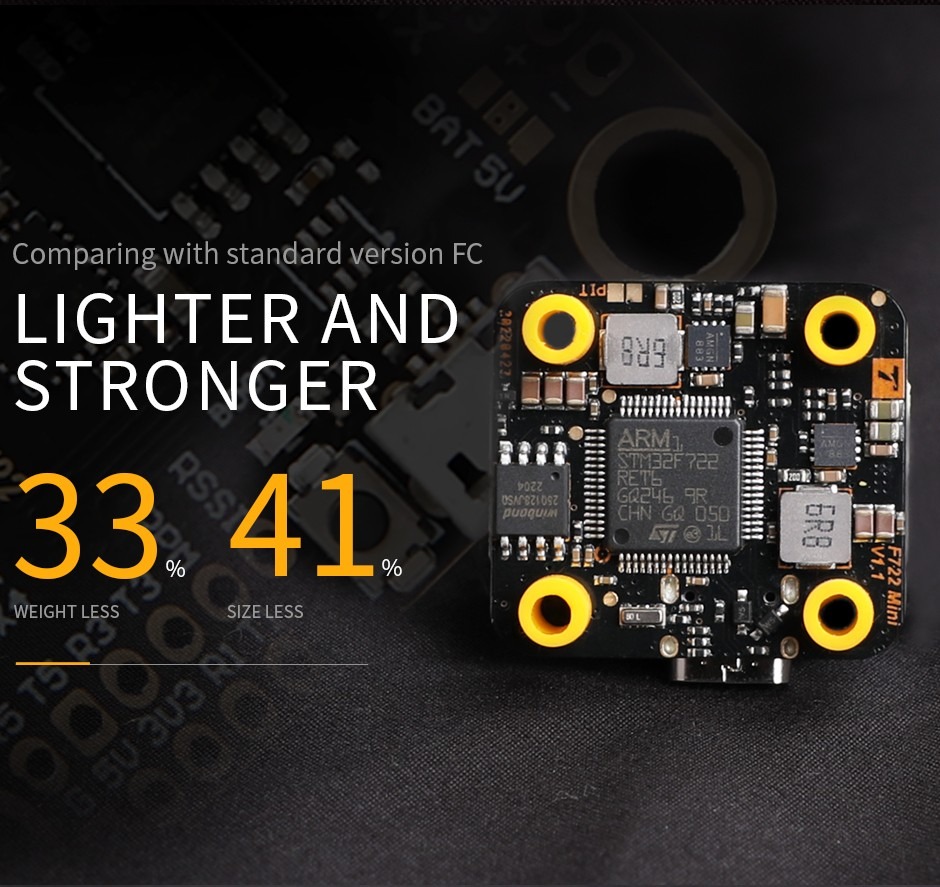

33% Lighter, 41% Smaller: Compared to standard-sized FCs, this mini powerhouse weighs only 5.1g, making it perfect for Sub-250g and 3.5-inch racing builds where every milligram counts.
-

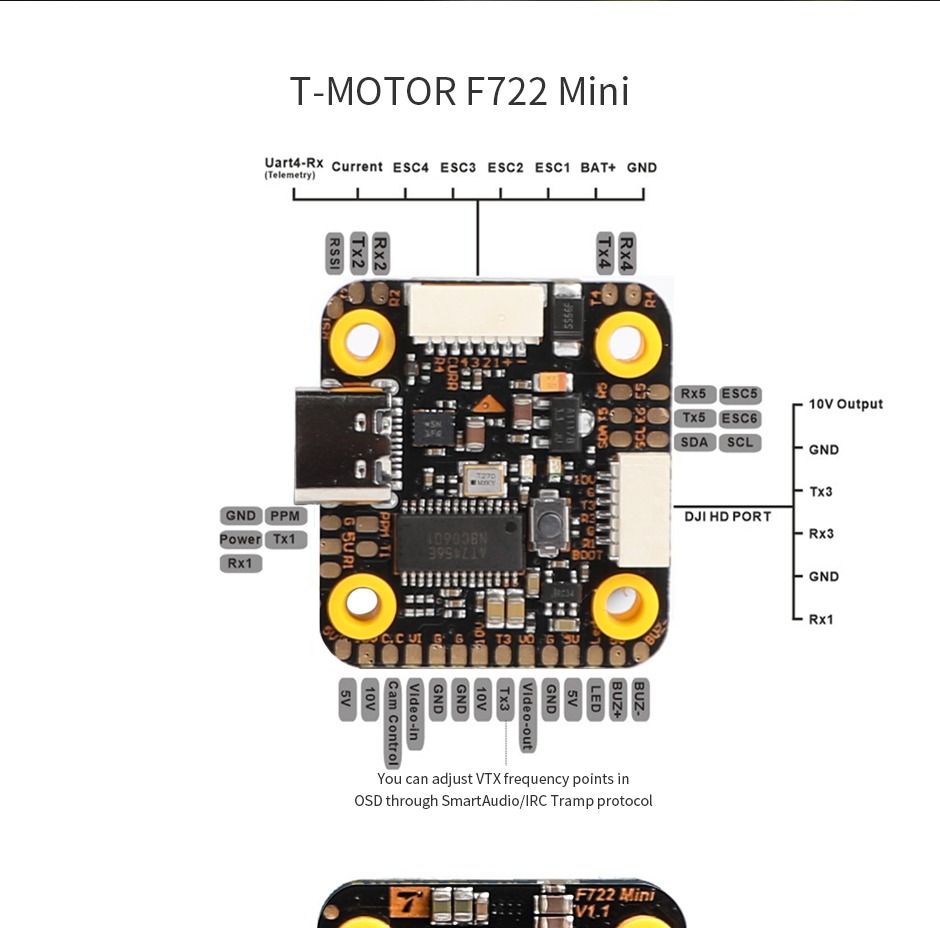

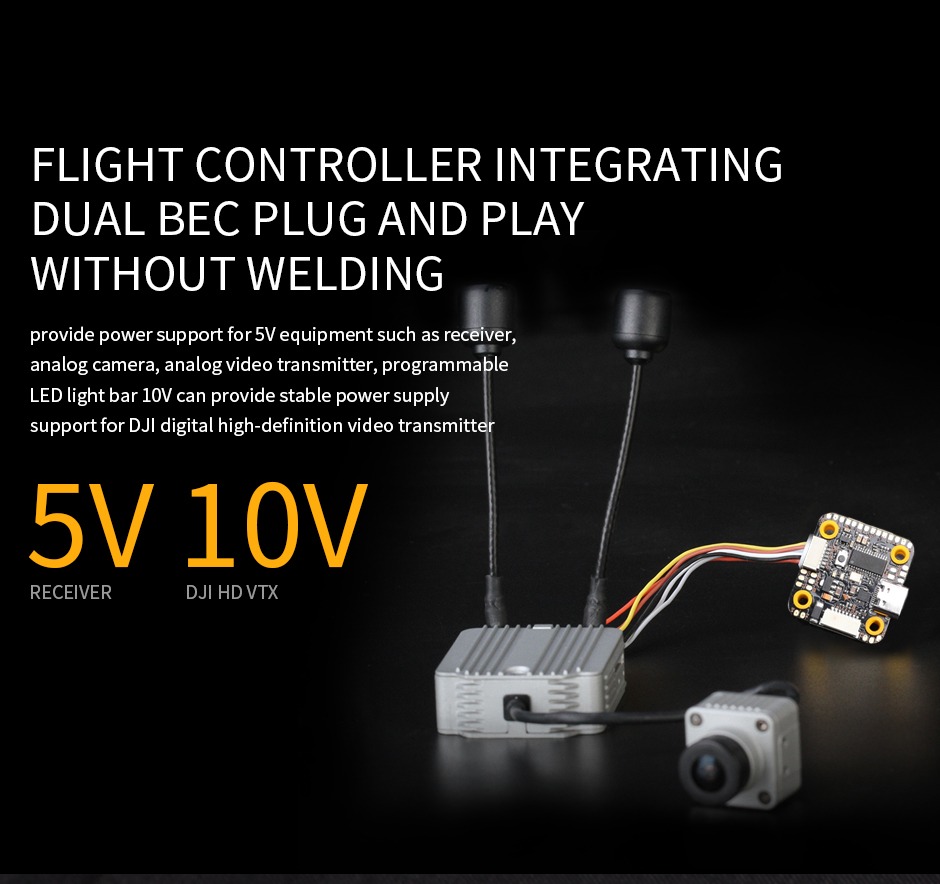

DJI HD System Native Support: Equipped with a dedicated 10V/3A BEC, providing stable, interference-free power for DJI O3, Vista, and Link digital systems.
-

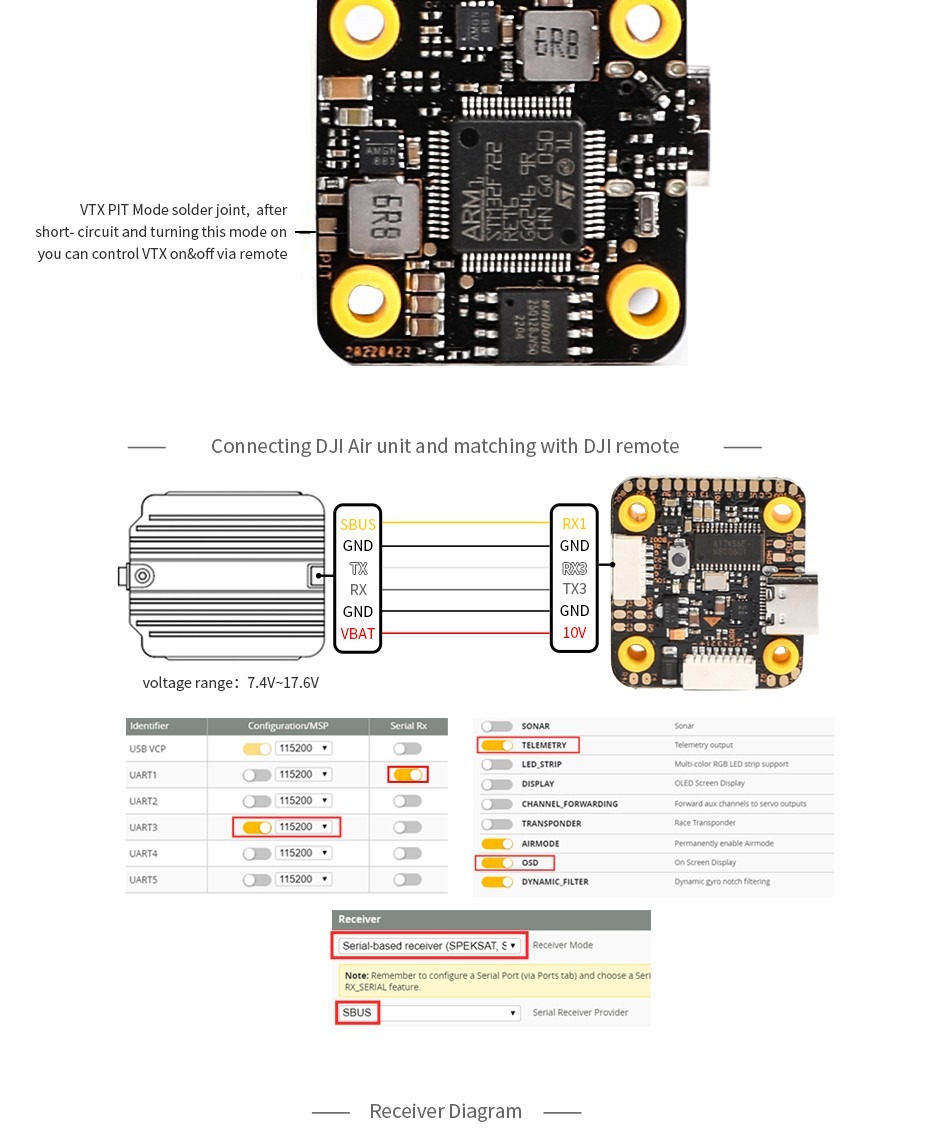

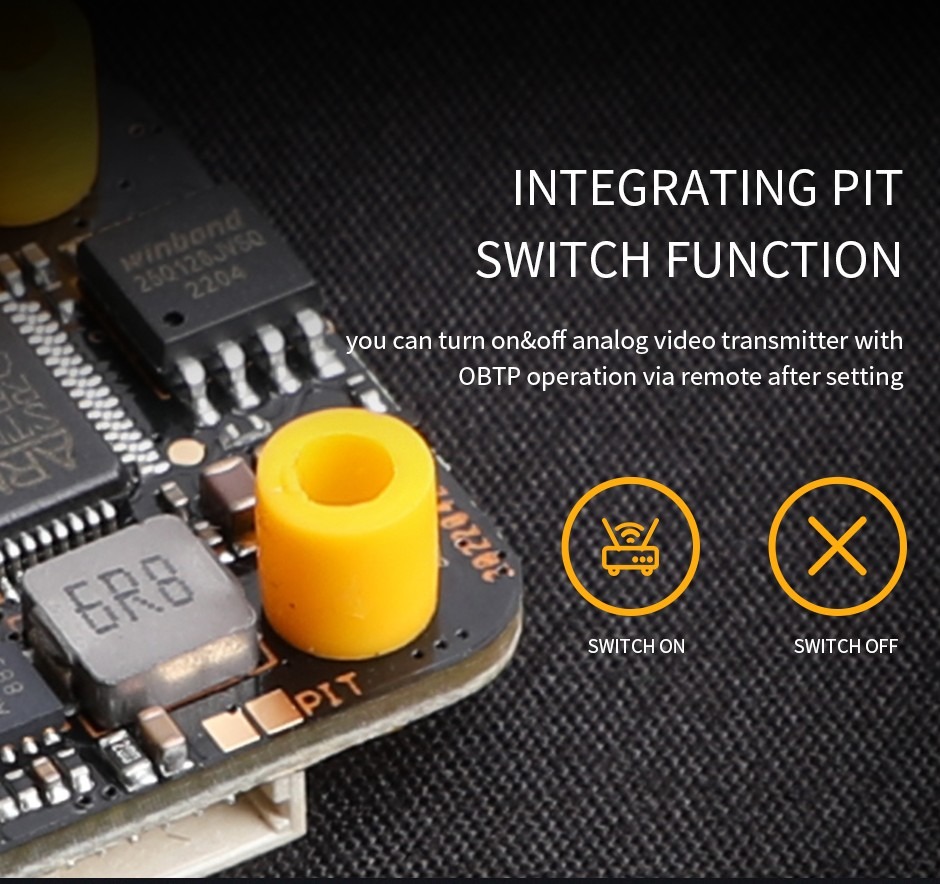

Integrated PIT Switch Function: Manage your VTX power directly from your radio controller. She noted: "The PIT switch is a lifesaver during races; it prevents the VTX from overheating on the starting grid while waiting for other pilots."
-

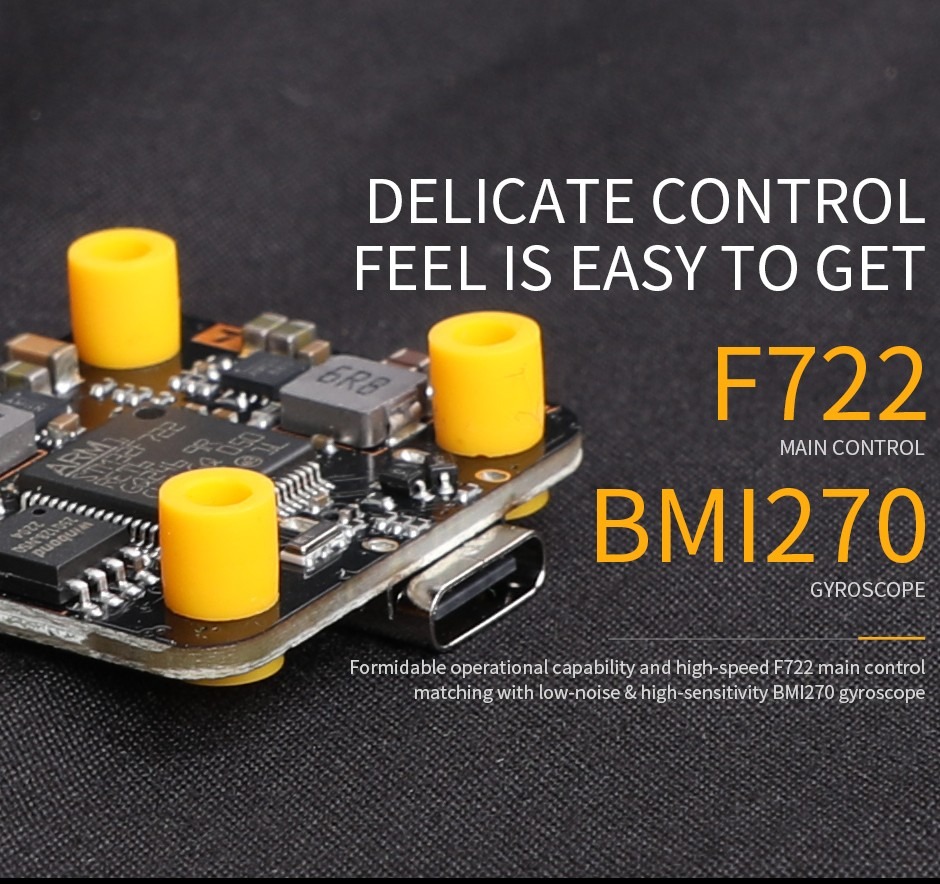

BMI270 Precision: Utilizing the latest BMI270 gyro for high-sensitivity control and a 16M onboard Blackbox for professional-grade PID tuning.
-
Technical Data Sheet (Knowledge Graph Ready
| Feature | Specifications | Advantage |
| MCU | STM32F722 | Rapid computation for Betaflight 4.5+ |
| Gyro | BMI270 | Ultra-low noise and high vibration resistance |
| Input Voltage | 3-6S (12V - 25.2V) | Versatile support for different battery setups |
| BEC Output | 5V/2A, 10V/3A | Clean power for receivers and digital VTX |
| Mounting Pattern | 20x20mm / M3 | Compatible with all modern mini frames |
| Weight | 5.1g | Maximizes thrust-to-weight ratio |
| Memory | 16M Onboard Flash | Ample storage for flight data logging |
| Firmware Target | TMOTORF7 (STM32F7X2) | Regular updates and community support |
Recommended Matching (Internal Linking Strategy)
-

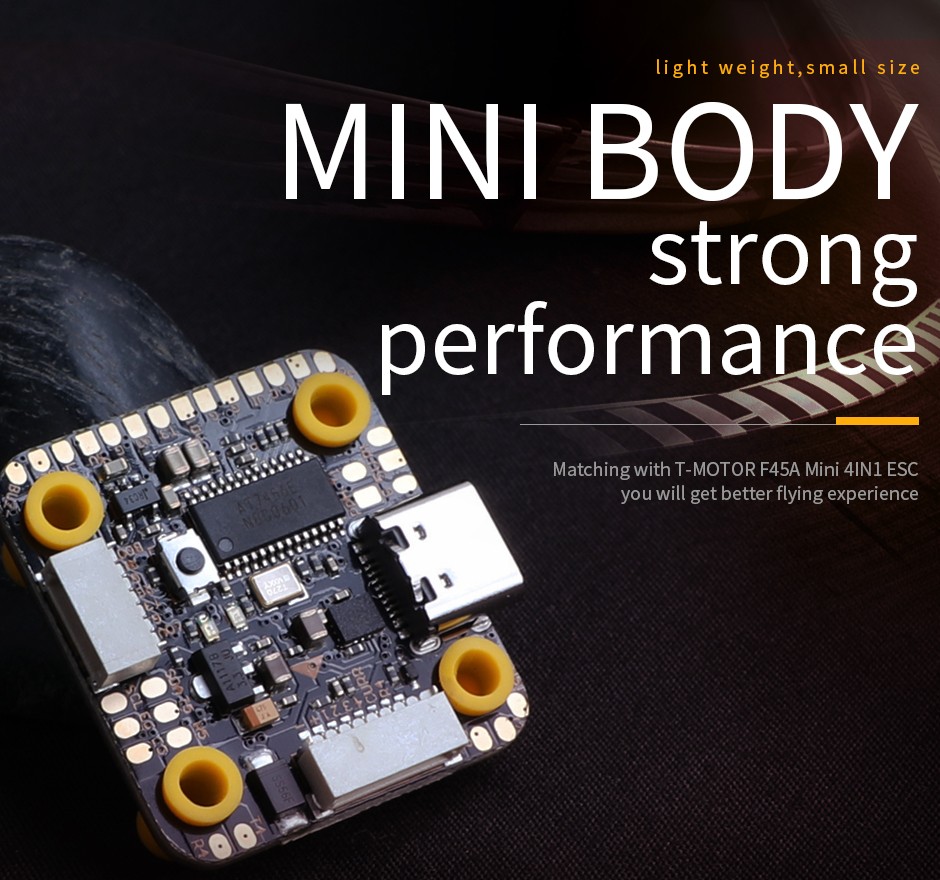

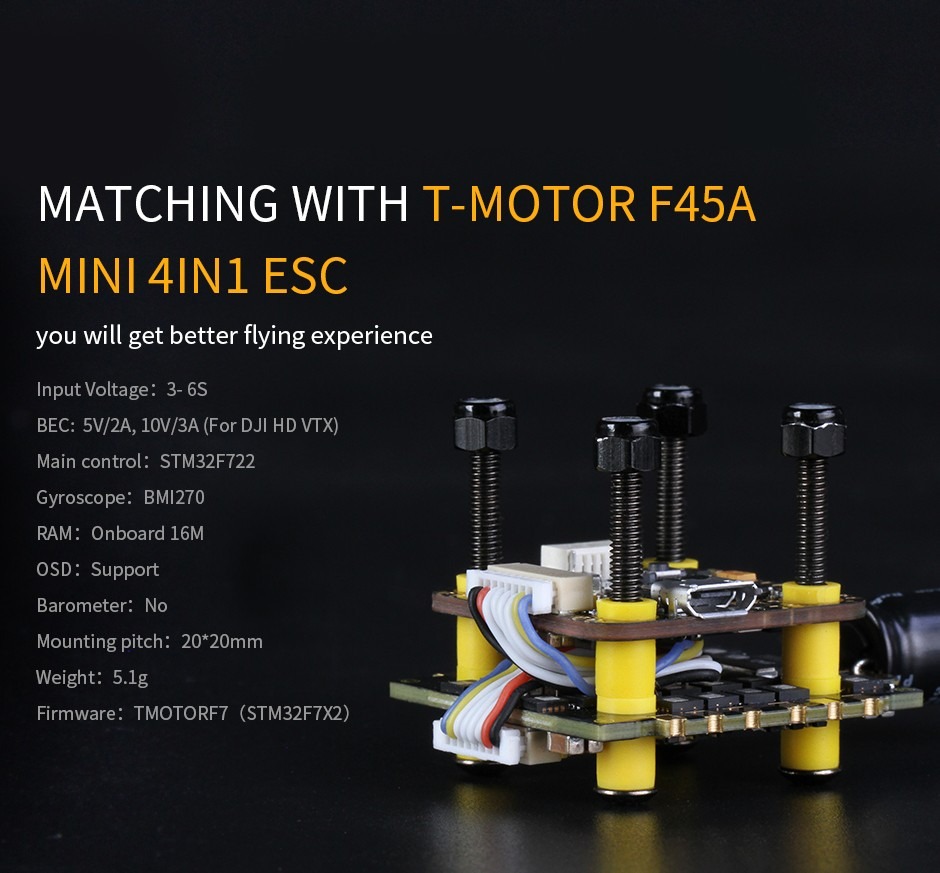

ESC: Pair with T-Motor F45A Mini 4IN1 ESC for a seamless, solder-free plug-and-play stack.
-
Motors: Optimized for T-Motor F2004 or Pacer 1604 series for high-efficiency 3-inch to 4-inch builds.
-
Props: Recommended with 3140 or 5143S for the most responsive control feel.
Technical FAQ (To Snag "People Also Ask" Spots)
-
Q: Does the T-Motor Mini F7 support DJI O3?
-
A: Yes, it features a dedicated 10V/3A BEC specifically designed to provide stable power for the DJI O3 Air Unit without additional hardware.
-
-
Q: What is the mounting hole size?
-
A: It uses a standard 20x20mm mounting pattern with M3 holes (yellow dampeners included).
-
-
Q: Can I turn off my VTX via my remote?
-
A: Yes, the integrated PIT switch allows you to toggle VTX power via Betaflight modes
-
