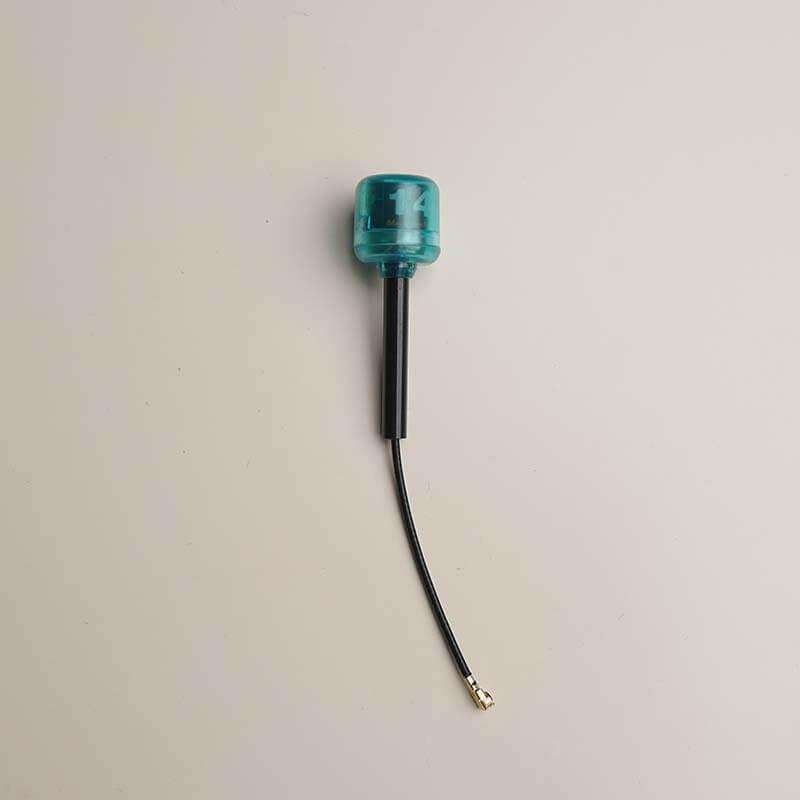

Osprey 5.8GHz 90mm U.FL Antenna - LHCP 90mm

With its lightweight design and new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength, and clarity, and is now available to FPV pilots at an incredibly attractive price.

The Osprey Antenna features a transparent casing, and a unique hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.

Although the Osprey Antenna is both small and light, it does not sacrifice any performance with a high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.

Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of the frequency you're on, you are guaranteed to have a signal as clear and strong as it’s possible.

Specifications
Radiation Efficiency: 99%
Avg. Gain: 2.82dbi
Polarization: LHCP
Connector: UFL (IPEX-1)
Dimensions(head): 14.1mm dia. X 14mm height.
Length: 104mm
Cable: Protection tube RG1.13 coax.
Weight: 2.5g
