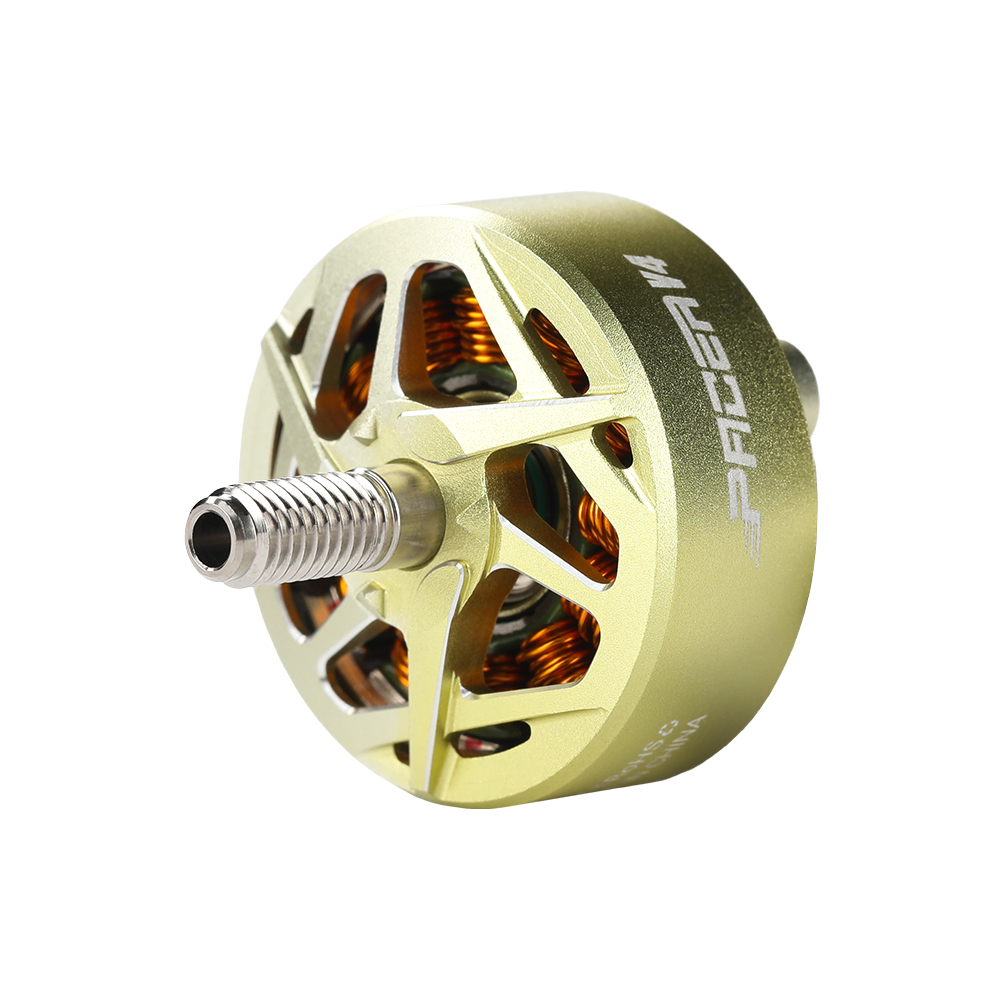

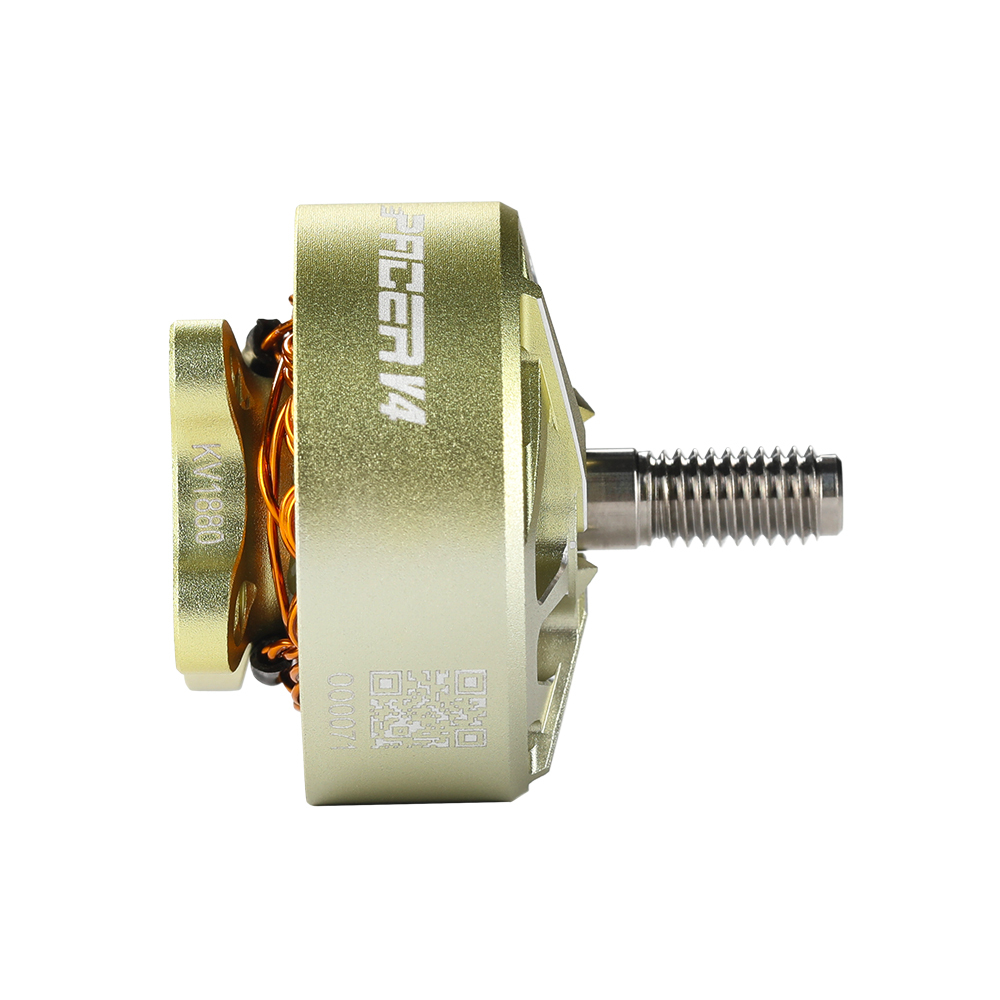

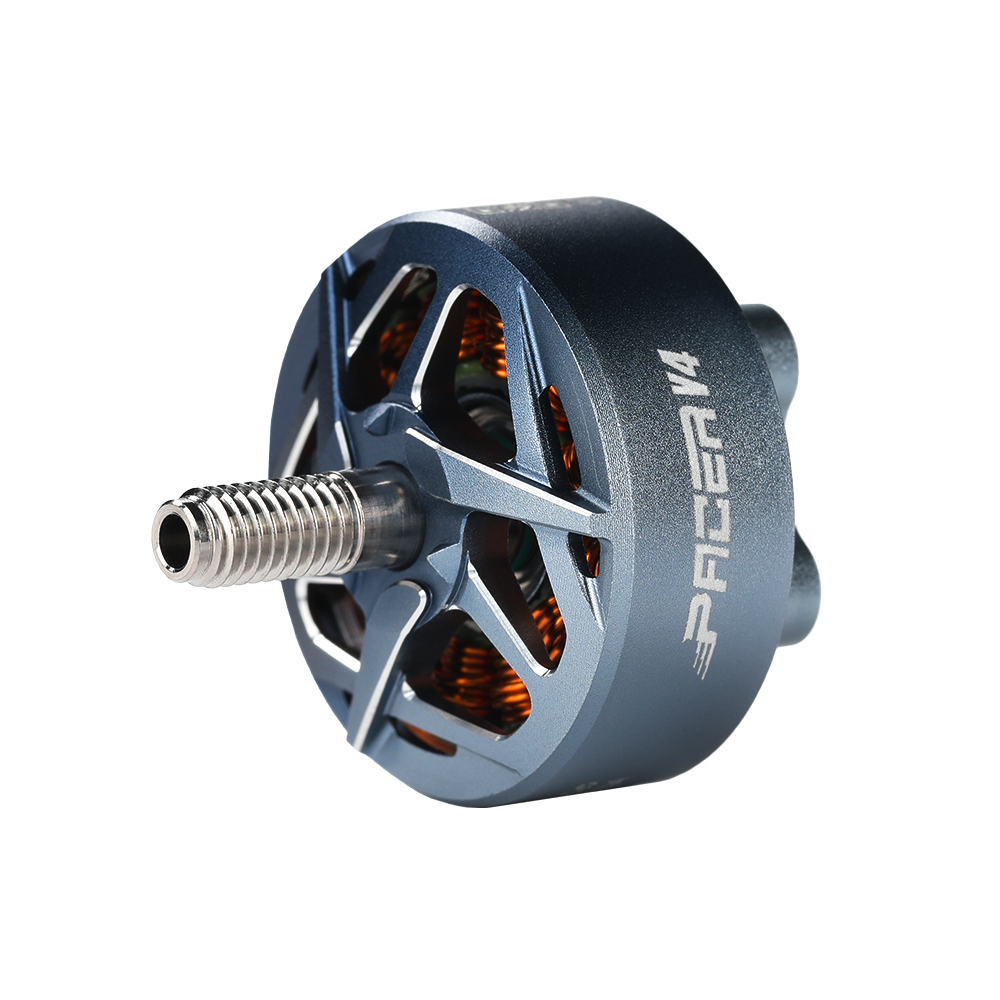

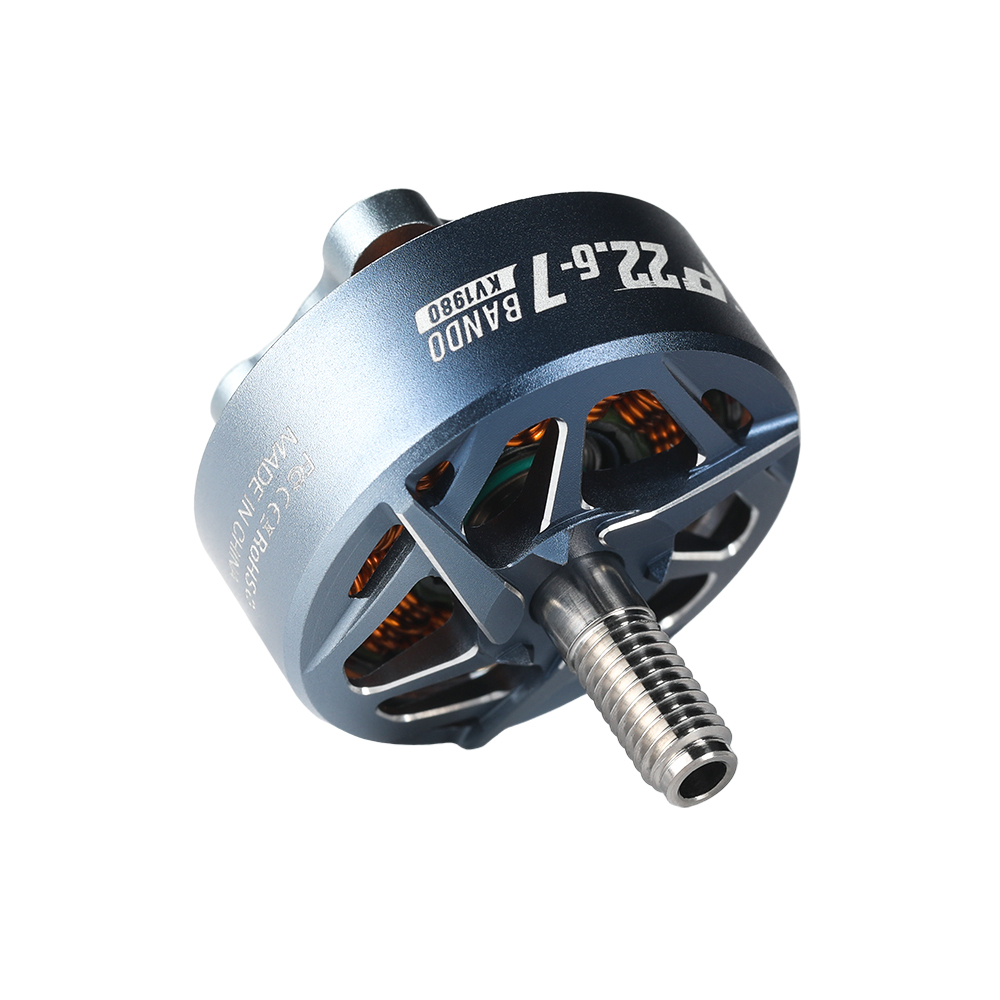

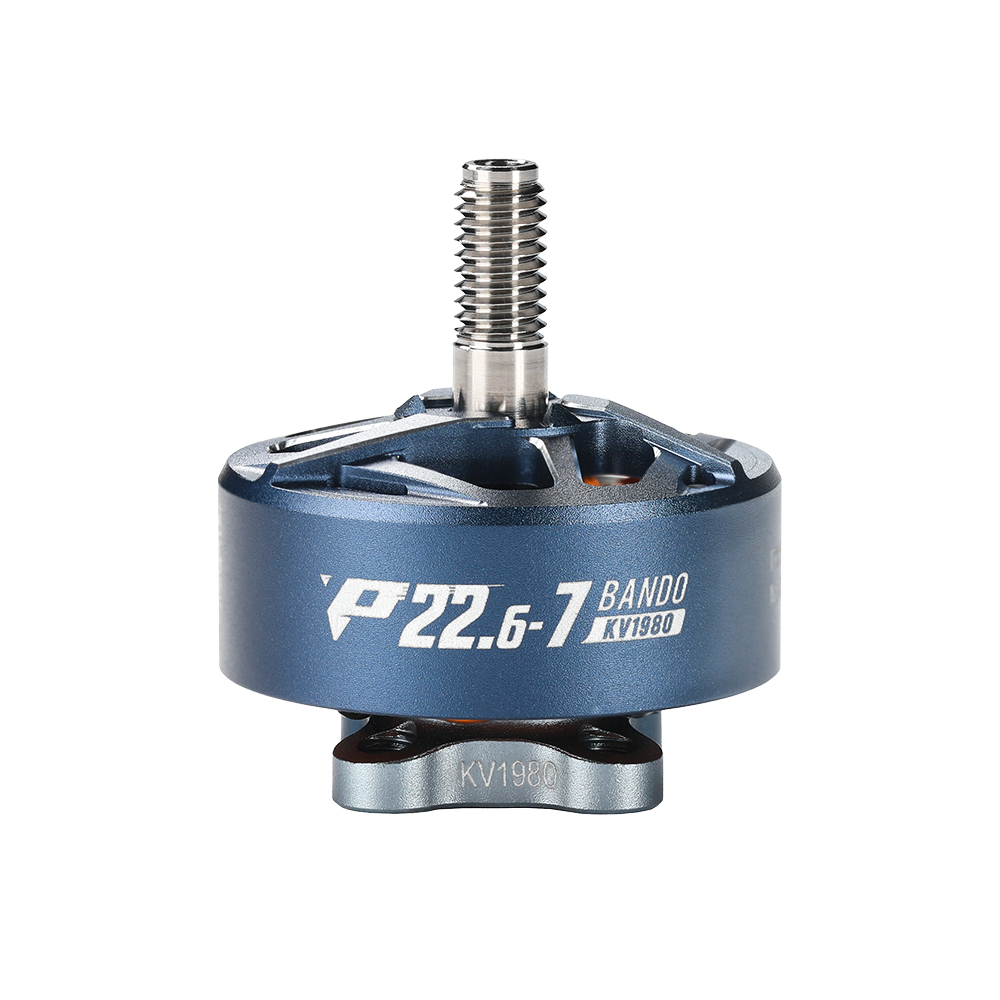

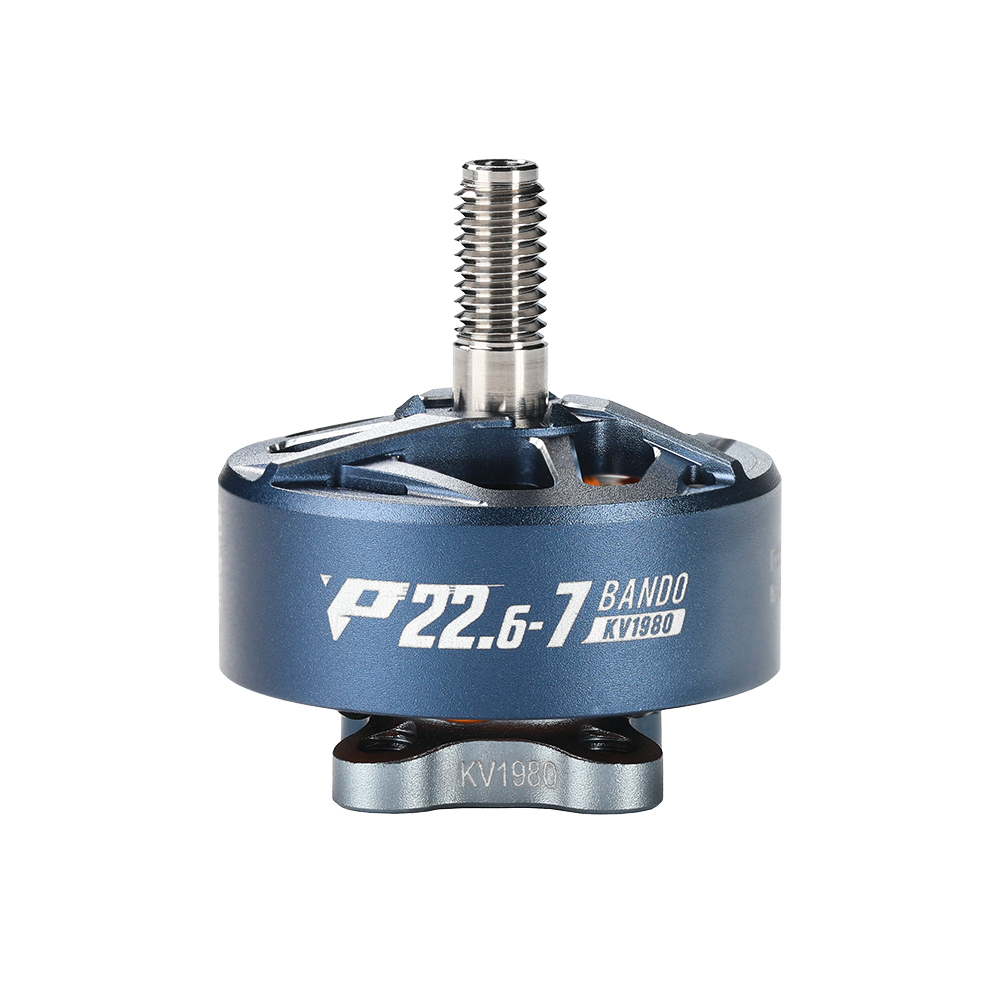

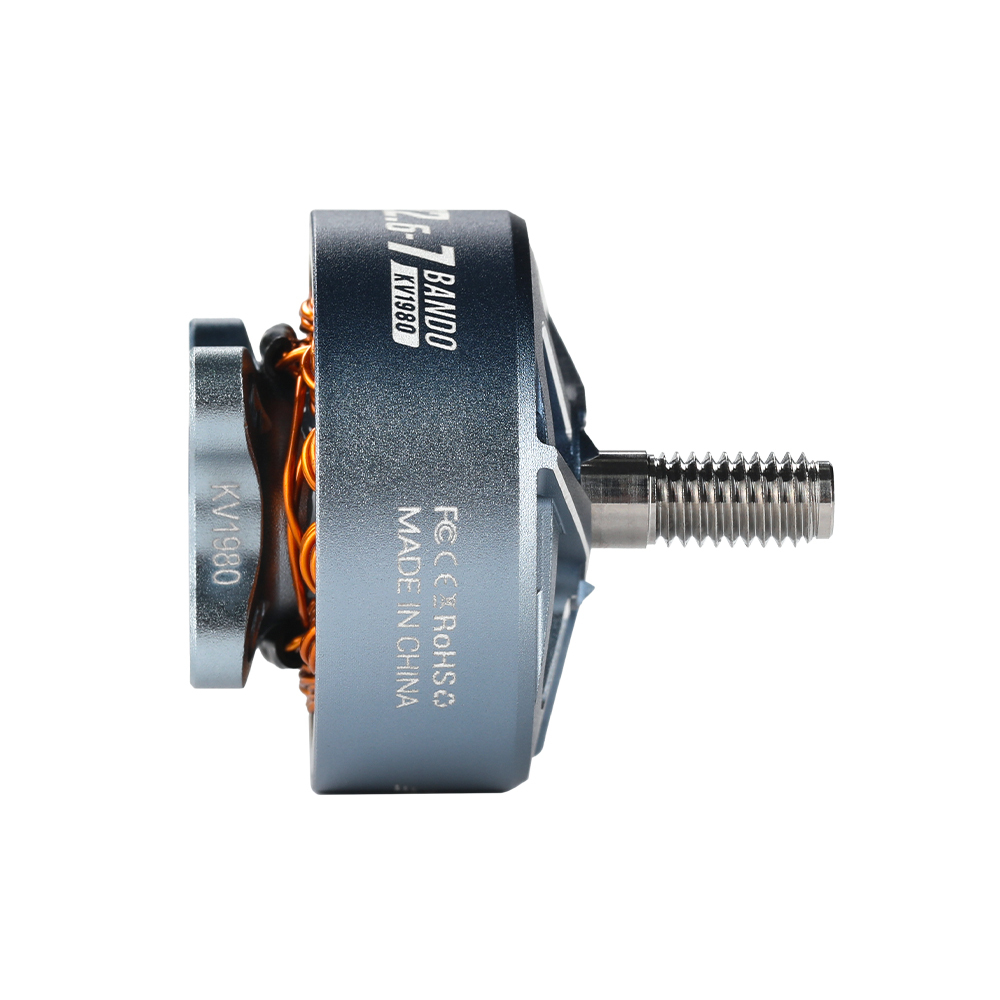

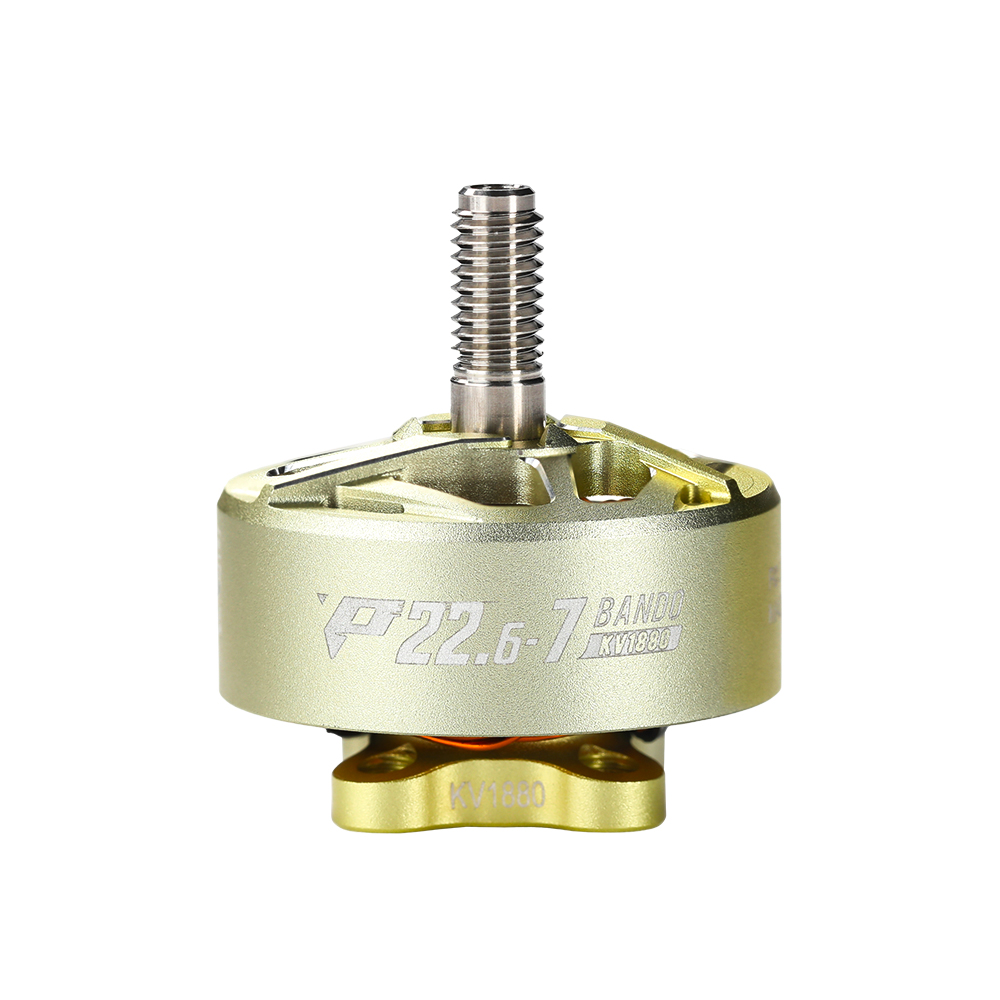

⭐ P22.6-7 Bando Motor – Built for Extreme Freestyle & Bando FPV

The T-HOBBY P22.6-7 is engineered for pilots who push freestyle flying to the limit.
Featuring a reinforced 5mm inner shaft, robust crash-proof structure, and ultra-smooth throttle response, this motor delivers powerful, reliable performance for 5-inch freestyle, bando, acro, and technical gap-flying.

Designed to survive concrete hits and still fly like new, the P22.6-7 is your new go-to motor for high-risk FPV environments.

🔥 Key Features

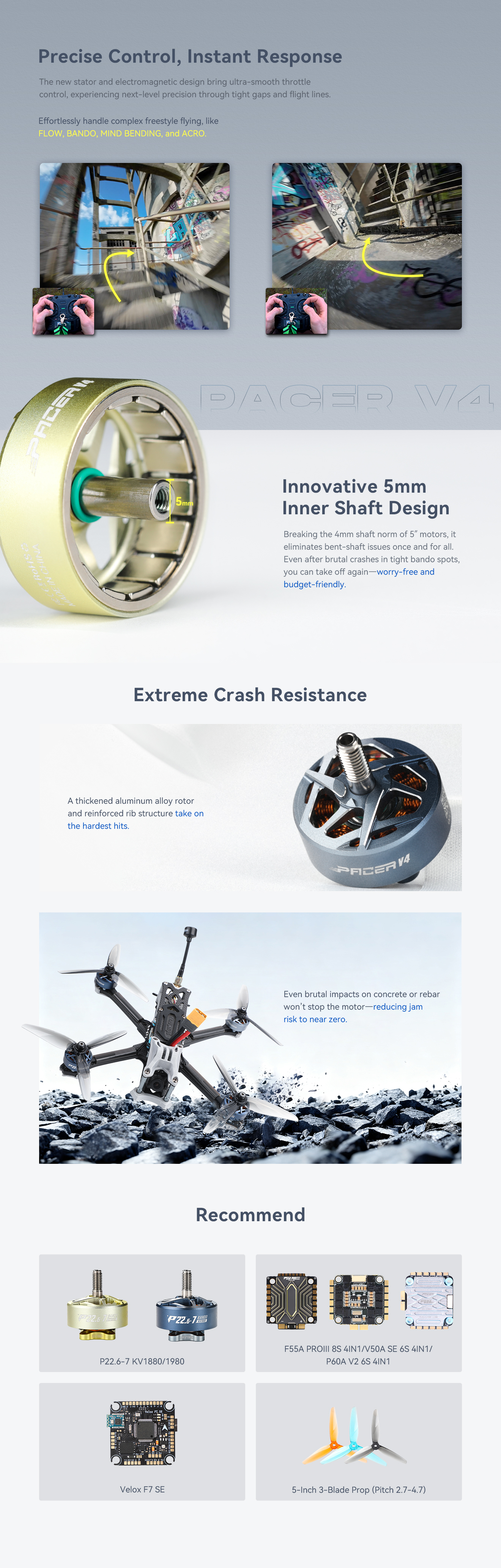

• Upgraded 5mm Inner Shaft
  Stronger bending resistance for bando-level impacts.

• Crash-Proof Structural Reinforcement
  Durable motor bell and shaft system engineered for repeated heavy crashes.

• Smooth & Precise Throttle Control
  Excellent low-end modulation for flow flying and precise cornering.

• Low Jitter · Low Vibration · Low Jamming Risk
  Thanks to high-quality bearings and strict dynamic balancing.

• Optimized for Freestyle / Bando
  Perfect for flow moves, acro tricks, power loops, split-S, tight gaps, and cinematic freestyle.

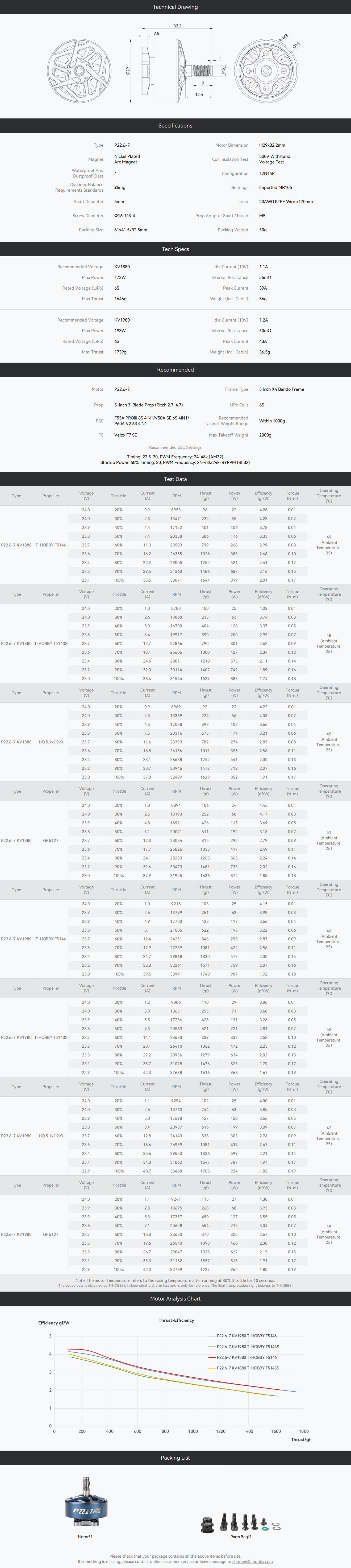

⚙ Specifications

• Model: P22.6-7

• Dimensions: Φ29 × 32.2mm

• Magnet: Nickel-Plated Arc Magnets

• Configuration: 12N14P

• Inner Shaft: 5mm

• Prop Mount: M5

• Mounting Pattern: Φ16 – M3 × 4

• Bearings: MR105 Imported

• Wire: 20AWG PTFE (170mm)

• Dynamic Balance: ≤5mg

• Weight: 36–36.5g

🚀 Performance

KV1880

• Max Power: 173W

• Max Thrust: 1646g

• Peak Current: 39A

KV1980

• Max Power: 193W

• Max Thrust: 1739g

• Peak Current: 43A

Recommended Setup:

- ESC: F55A PROIII / V50A SE / P60A V2 6S

- FC: Velox F7 SE

- Props: T-Hobby F5146 / GF 5127 / T5143S

- Battery: 6S LiPo 1000–1300mAh

- Frame: 5-inch Bando Frame (X style)
